AU4852 is a monolithic half-bridge smart power stage with integrated power MOSFETs and gate drivers. It is capable of producing 35 A continuous current over broad input supply range.

AU4852 is intended for applications that require high light load efficiency. AU4852 enters ultra low quiescent current state while under light load conditions.

Tri-state output controllers are compatible with this gadget. It also has a general-purpose current sense and temperature sense.

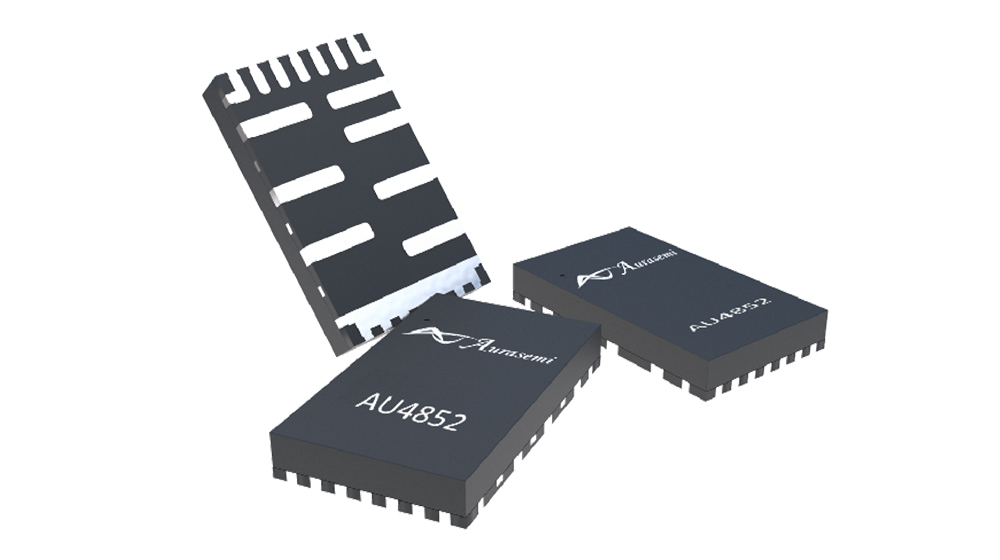

The AU4852 can operate between 100 KHz and 2 MHz and is accessible in a relatively compact  3 mm x 5 mm FCTQFN.

The AU4852 is suited for notebook applications due to its exceptional efficiency and compact design

• Broad operating input range

• 35 A Output Current

• Supports tri-state PWM controllers

• Accurate current sense

• Accurate temperature reporting

• Ultra low quiescent current mode

• Over Temperature Protection

• Built-in switch for bootstrap

• Over Current Protection

• Used for multi-phase operation

• 3 mm × 5 mm, 21-Pin, TQFN package

• AMD CPU/GPU Core Power

• Telecom and Networking Systems
