AU47G2 is an AVSBus compliant dual output 16 phase buck controller with built-in OTP & MTP non-volatile memories (NVM), PMBus™ & AVSBus interfaces. Advanced control features such as programmable DC and AC load line, undershoot (UVR) & overshoot reduction (OVR) provide fast transient response hence needing low output capacitance. The controller supports TLVR output configuration.

The device also provides dynamic phase add/drop for efficiency improvement across loads. It supports fast dynamic voltage transitions with programmable slew rates.

Programmable parameters can be configured by the PMBus/AVSBus interface and can be stored in NVM as default values. The MTP gives an added advantage of optimizing the device performance in the field.

The controller enables and supports advanced diagnostic capability.

• Multi-phase scalable power supply

    -Flexible phase assignment: (16+0) to (0+16)

    -Dual output voltage control loop

• Improved performance

    -Improved efficiency: Auto phase add/drop

    -Programmable Over-shoot & Under-shoot Reduction

     thresholds for better transient

    -Automatic Efficiency Management for fine frequency

     control resulting in ~2% increase in efficiency

    -TLVR config support

• Output Range, Accuracy, Telemetry

    -0.4 V to 2.74 V output

    -0.5% accurate output with differential sense & AVP for

      improved processor power & performance over useful operation range

    -Supports up to 3000 A output current

• Protection Capability

    -Programmable Fault Recovery: Latch & Hiccup

    -All protections: UVLO, UVP, OVP, OCP, OTP

    -Cycle by cycle per-phase current limit

    -Thermal Balance Management (TBM™)

    -TLVR secondary Open/Short detection

    -Configurable OCP_L/OCW signal

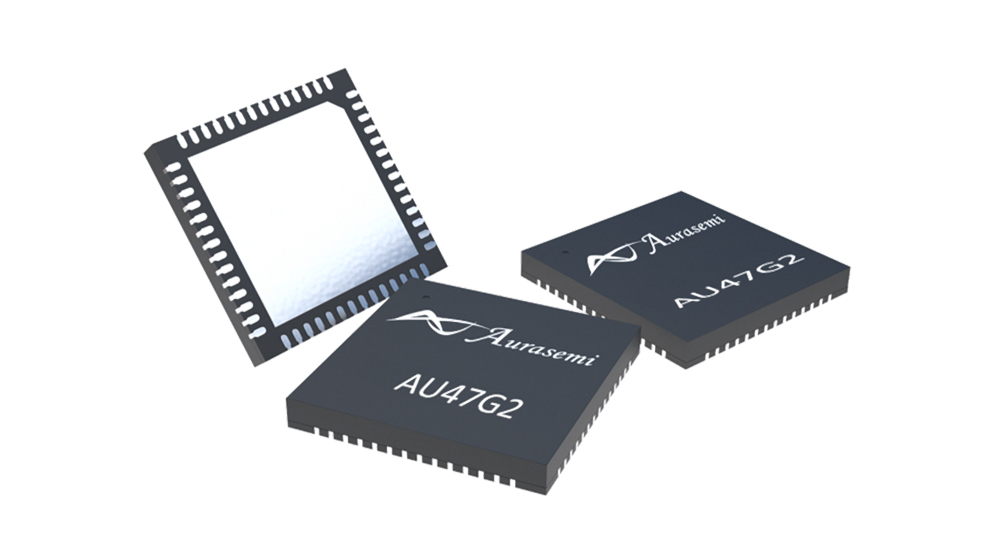

• 7 mm × 7 mm, 56-Pin, QFN Package

• Servers

• Graphics cards

• FPGAs

• ASICs
